Special solid lubricating drag-reducing material for drilling fluid. It features high temperature resistance, excellent lubrication, and stable chemical properties, and can evenly adhere to the wellbore and drill string surfaces, significantly reducing friction and torque, effectively preventing sticking and jamming. It also has plugging and wear-resistant effects, improves the smoothness of the mud cake, does not affect the performance of the mud system, and is widely used in deep wells, directional wells, and horizontal wells to enhance drilling efficiency and reduce downhole complications.

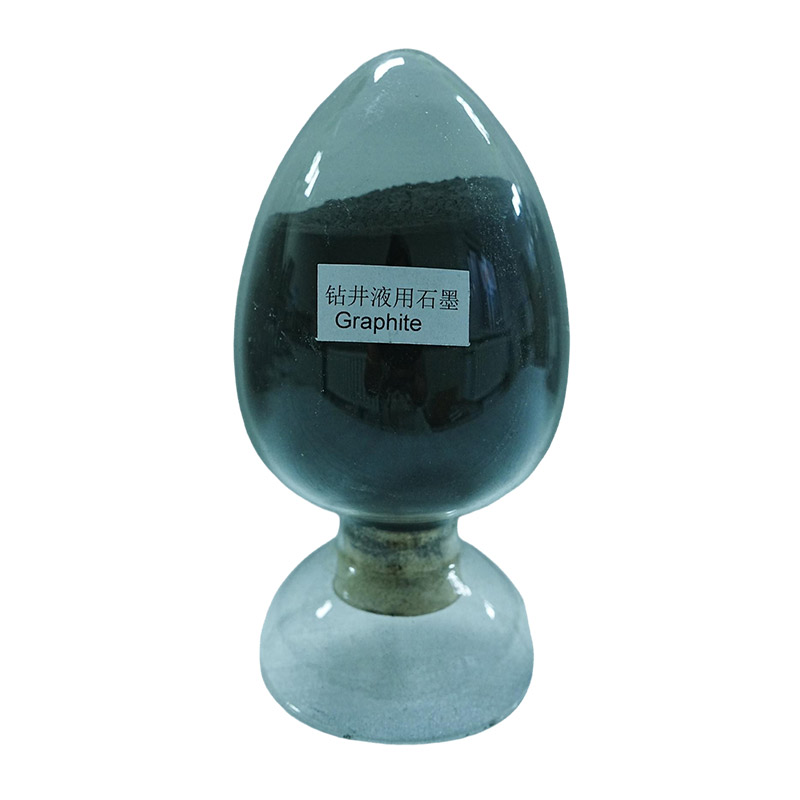

Graphite (Solid Lubricant for Drilling Fluids)
Standard: Q/SY 17375-2022| Section 1: IdentificationInformation | |
| Product Name | Graphite (Solid Lubricant for Drilling Fluids) |
| Standard | Q/SY 17375-2022 |
| Recommended Use | Lubricant, friction reducer for water-based drilling fluids |
| Company | Xingtai Huaju Drilling Fluid Additives Co., Ltd. |
| Emergency Telephone | 118631934518 |
| Section 2: Hazards IdentificationInformation | |
| GHS Classification | Not classified as dangerous goods |
| Signal Word | None |
| Hazard Statement | Dust may irritate eyes, skin and respiratory tract |
| Physical Hazards | Non-flammable, non-explosive at room temperature |
| Section 3: Composition/Information on IngredientsInformation | |
| Main Component | Natural graphite / Synthetic graphite |
| Fixed Carbon | ≥80.0% |
| Hazardous Ingredients | None |
| Section 4: First Aid MeasuresInformation | |
| Inhalation | Move to fresh air; rest and keep warm |
| Skin Contact | Remove contaminated clothing; rinse with plenty of water |
| Eye Contact | Flush with water for at least 15 minutes; seek medical advice |
| Ingestion | Rinse mouth; do NOT induce vomiting; seek medical attention |
| Section 5: Firefighting MeasuresInformation | |
| Suitable Extinguishing Media | Water spray, dry chemical, foam, CO₂, sand |
| Firefighting Protection | Wear self-contained breathing apparatus (SCBA) |
| Combustion Products | Carbon dioxide, carbon monoxide |
| Section 6: Accidental Release MeasuresInformation | |
| Personal Protection | Wear dust mask, goggles, gloves |
| Cleanup Method | Collect spilled material into sealed containers |
| Environmental Protection | Do not discharge into water, soil or drains |
| Section 7: Handling and StorageInformation | |
| Handling | Avoid dust; ensure good ventilation |
| Storage | Cool, dry, ventilated; sealed packaging; moisture-proof |
| Incompatible Materials | Strong oxidizing agents |
| Packaging | 25 kg paper-plastic composite bag |
| Section 8: Exposure Controls/Personal ProtectionInformation | |
| Respiratory Protection | Dust respirator |
| Eye Protection | Safety goggles |
| Hand Protection | Protective gloves |
| Body Protection | Work clothes |

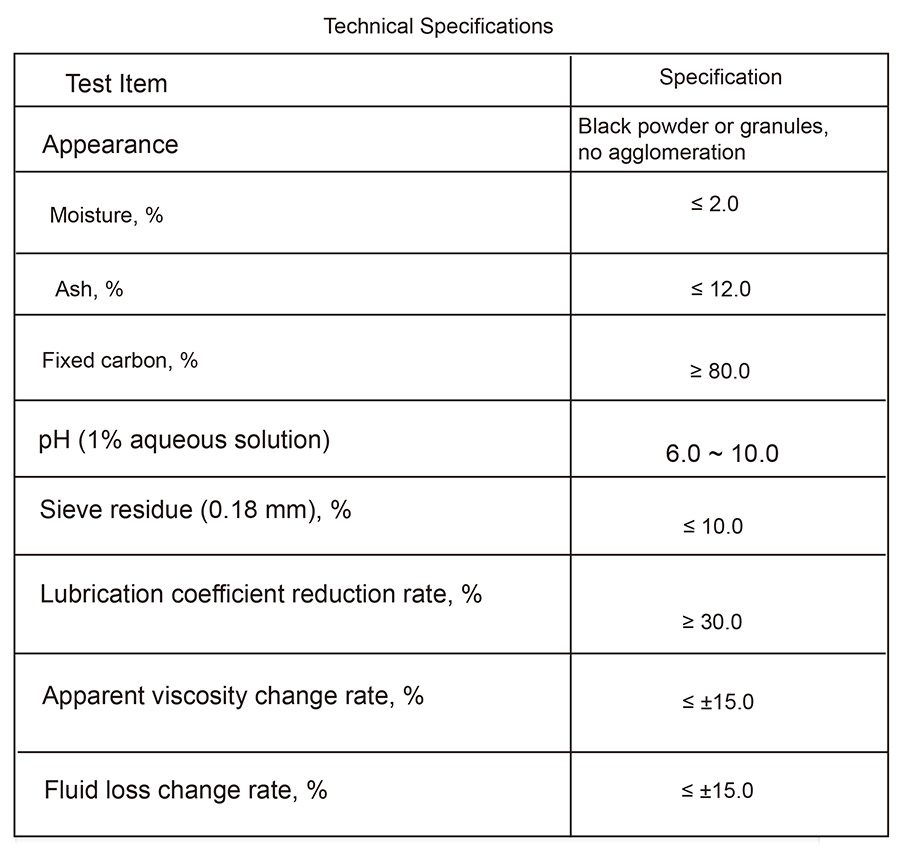

| Section 9: Physical and Chemical Properties (Q/SY 17375-2022)Information | |
| Appearance | Black powder or granules, no agglomeration |
| Moisture, % | ≤ 2.0 |
| Ash, % | ≤ 12.0 |
| Fixed carbon, % | ≥ 80.0 |
| pH (1% aqueous solution) | 6.0 ~ 10.0 |
| Sieve residue (0.18 mm), % | ≤ 10.0 |
| Lubrication coefficient reduction rate, % | ≥ 30.0 |
| Apparent viscosity change rate, % | ≤ ±15.0 |
| Fluid loss change rate, % | ≤ ±15.0 |
| Solubility | Insoluble in water |
| Section 10: Stability and ReactivityInformation | |
| Stability | Stable under normal conditions |
| Conditions to Avoid | High temperature, open flame, strong oxidizers |
| Incompatibility | Strong oxidizing agents |
| Hazardous Polymerization | Will not occur |
| Section 11: Toxicological InformationInformation | |
| Acute Toxicity | Low toxicity |
| Irritation | Slight eye/skin/respiratory irritation |
| Carcinogenicity | No classification |
| Section 12: Ecological InformationInformation | |
| Aquatic Toxicity | Low toxicity |
| Biodegradability | Non-biodegradable |
| Environmental Impact | Avoid release into water |
| Section 13: Disposal ConsiderationsInformation | |
| Waste Type | General industrial solid waste |
| Disposal Method | Dispose according to local regulations |
| Section 14: Transport InformationInformation | |
| UN Number | Not regulated |
| Transport Class | Non-hazardous goods |
| Transport Notes | Moisture-proof, sun-proof, avoid package damage |
| Section 15: Regulatory InformationInformation | |
| Compliance Standards | GB/T 16483, GB/T 17519, Q/SY 17375-2022 |
| Regulatory Status | Non-hazardous chemical |
| Section 16: Other InformationInformation | |
| Revision Date | 2026-05-08 |
| Disclaimer | For industrial use only; follow local safety regulations |
